ESD kompatibel
ja
Eigenschaft
verzinkt
Eigenschaft Zuganker
blank
Farbe
silberfarbig
Geeignet für Nut
10
Gewicht
107 g
Liefereinheit
1

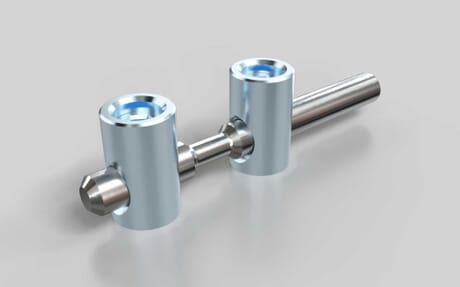

Lieferumfang
Zuganker; Buchse
Material
Stahl
Material Zuganker
Stahl nichtrostend
Nötige Bearbeitung
Sacklochbohrung DB17: Durchmesser: 17mm, Profil 40: Tiefe: 31mm, Profilkante mitte Bohrung: 22,5mm, Profil 45: Tiefe: 34mm, Profilkante mitte Bohrung: 22,5mm, Profil 50: Tiefe: 36mm, Profilkante mitte Bohrung: 22,5mm, Profil 60: Tiefe: 41mm, Profilkante mitte Bohrung: 22,5mm oder Durchgangsbohrung D17: Durchmesser: 17mm, Profilkante mitte Bohrung: 22,5
Serie
B-Typ
Zolltarifnummer
73269098
Nötige Bearbeitung Abkürzung
DB17 oder D17
Anzugsmoment
50 Nm
Winkel bis
180 °
Winkel von
90 °
Empfohlene Befestigung
keine weitere Befestigung nötig
ECLASS 11.0
23360290
ECLASS 4.0
22041424
ECLASS 4.1
22041424
ECLASS 5.0
23250311
ECLASS 5.1
23250311
ECLASS 6.0.1
23250311
ECLASS 7.1
23360290
ECLASS 8.0
23360290
UNSPSC 7.0
31162503
UNSPSC 9.0
31162503
