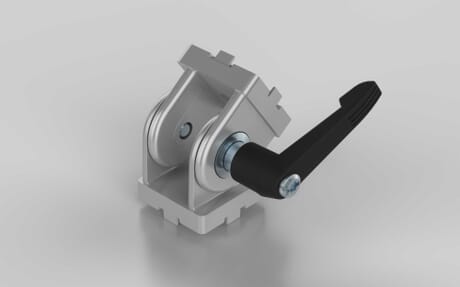

Gelenk, 30 x 30 mm, inklusive Klemmhebel, Nut 6
Artikelnummer 120000630 / alte Artikelnummer: 264500600
Das Gelenk 30 × 30 ermöglicht eine winkelverstellbare Verbindung von Aluminiumprofilen. Es eignet sich ideal für Konstruktionen mit regelmäßigem Verstellbedarf und bietet flexible Einsatzmöglichkeiten in Maschinen- und Anlagenkonstruktionen.
ESD kompatibel
nein
Eigenschaft
lackiert
Eigenschaft Klemmhebel
fiberglasverstärkt
Farbe
silberfarbig
Farbe Klemmhebel
schwarz
Gewicht
154 g
In Serie B geeignet für Nut
6
Inklusive Befestigung
nein
Klemmhebel
ja
Liefereinheit
1
Lieferumfang
Gelenk 30
Klemmhebel
Material
Aluminiumdruckguss
Material Klemmhebel
Kunststoff PA
Nötige Bearbeitung
Abhängig von Befestigungsmaterial
Serie
I-Typ
Zolltarifnummer
79070000
Bohrung / Senkung
6,6 mm
F max
6000 N
F max 2
500 N
Haltemoment
5 Nm
Höhe Gelenk 1
22,5 mm
Höhe Gelenk 2
22,5 mm
Maß x
30 mm
Maß y
30 mm
ECLASS 11.0
23360301
ECLASS 4.0
23030704
ECLASS 4.1
23030704
ECLASS 5.0
23020104
ECLASS 5.1
23020104
ECLASS 6.0.1
23020104
ECLASS 7.1
23020104
ECLASS 8.0
23020104
UNSPSC 7.0
31162403
UNSPSC 9.0
31162403
